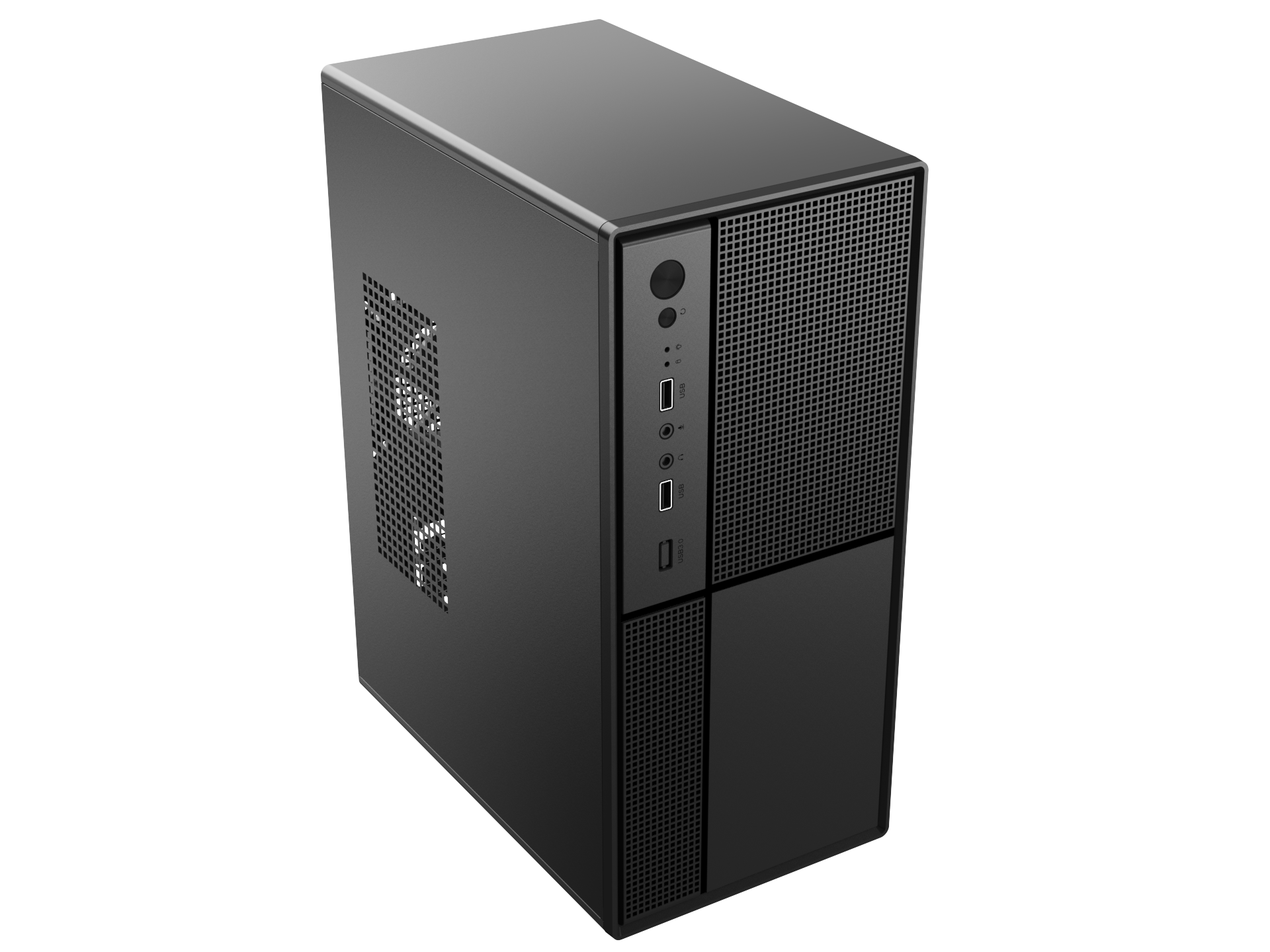

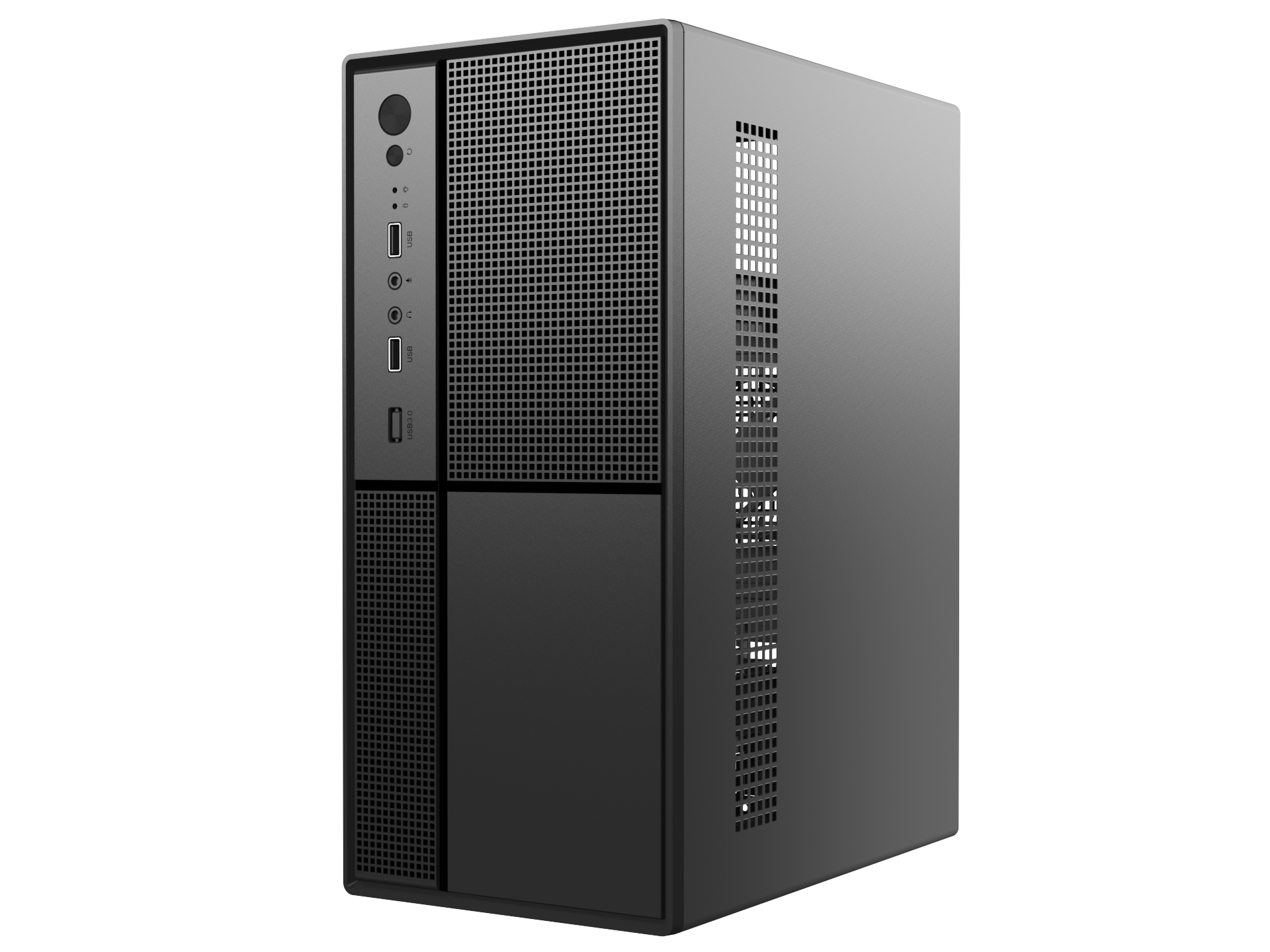

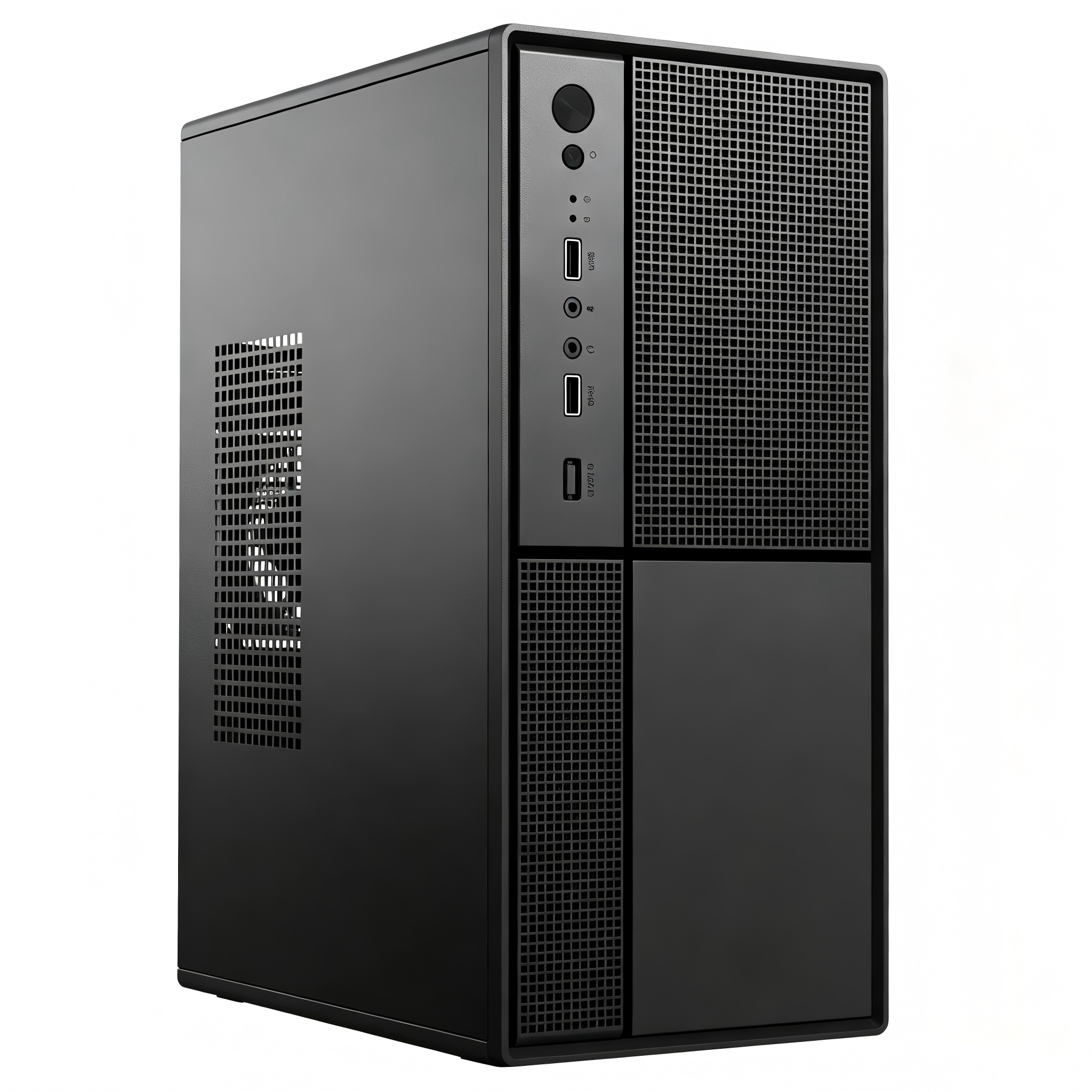

This slim vertical Micro-ATX office PC case is engineered for corporate office desktops, school student computers, small business workstations and large-scale institutional bulk procurement. Its narrow streamlined design takes up minimal desk space, perfectly fitting compact cubicles, front desk counters and small home study areas, solving the space occupation trouble of traditional bulky computer towers.

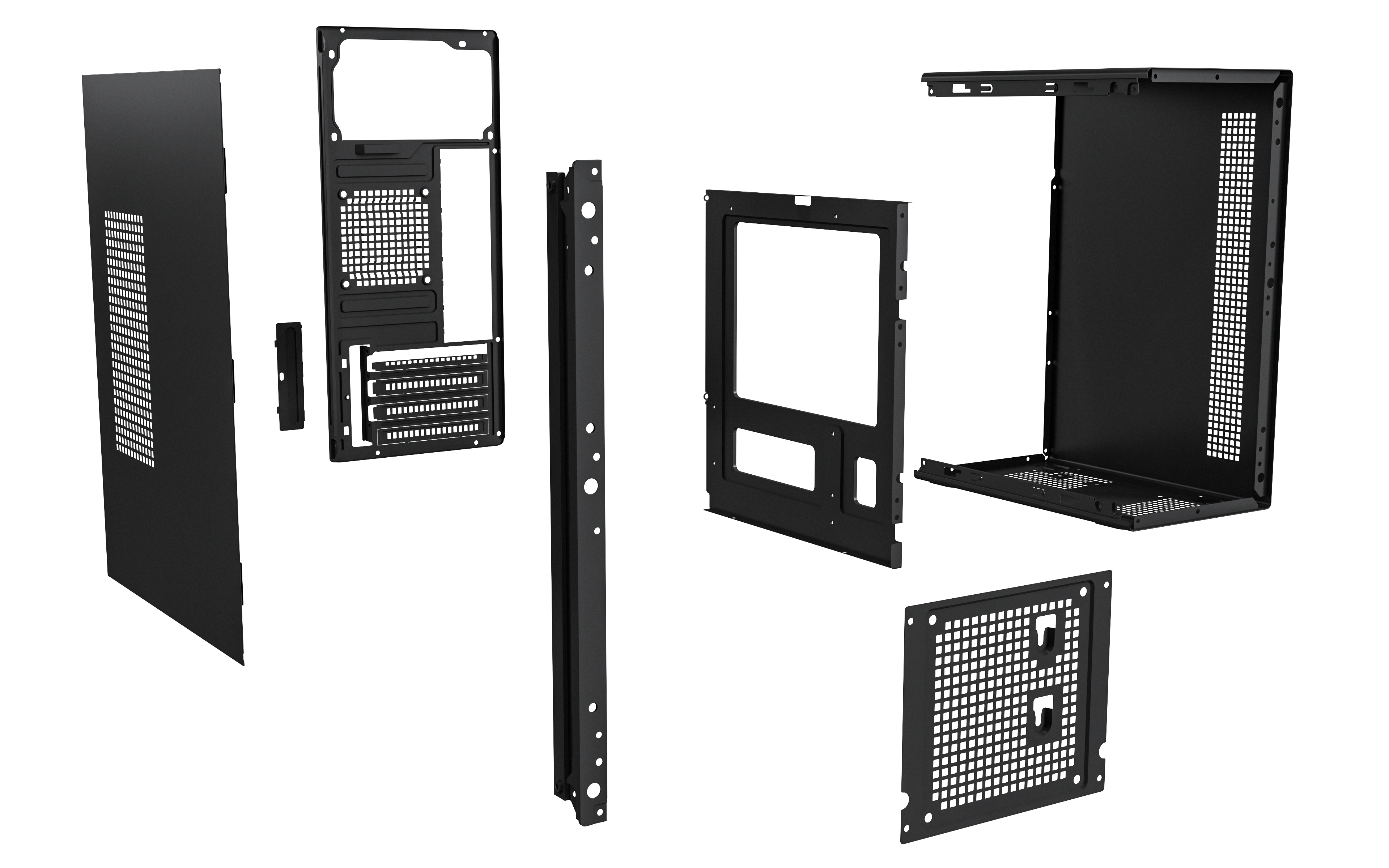

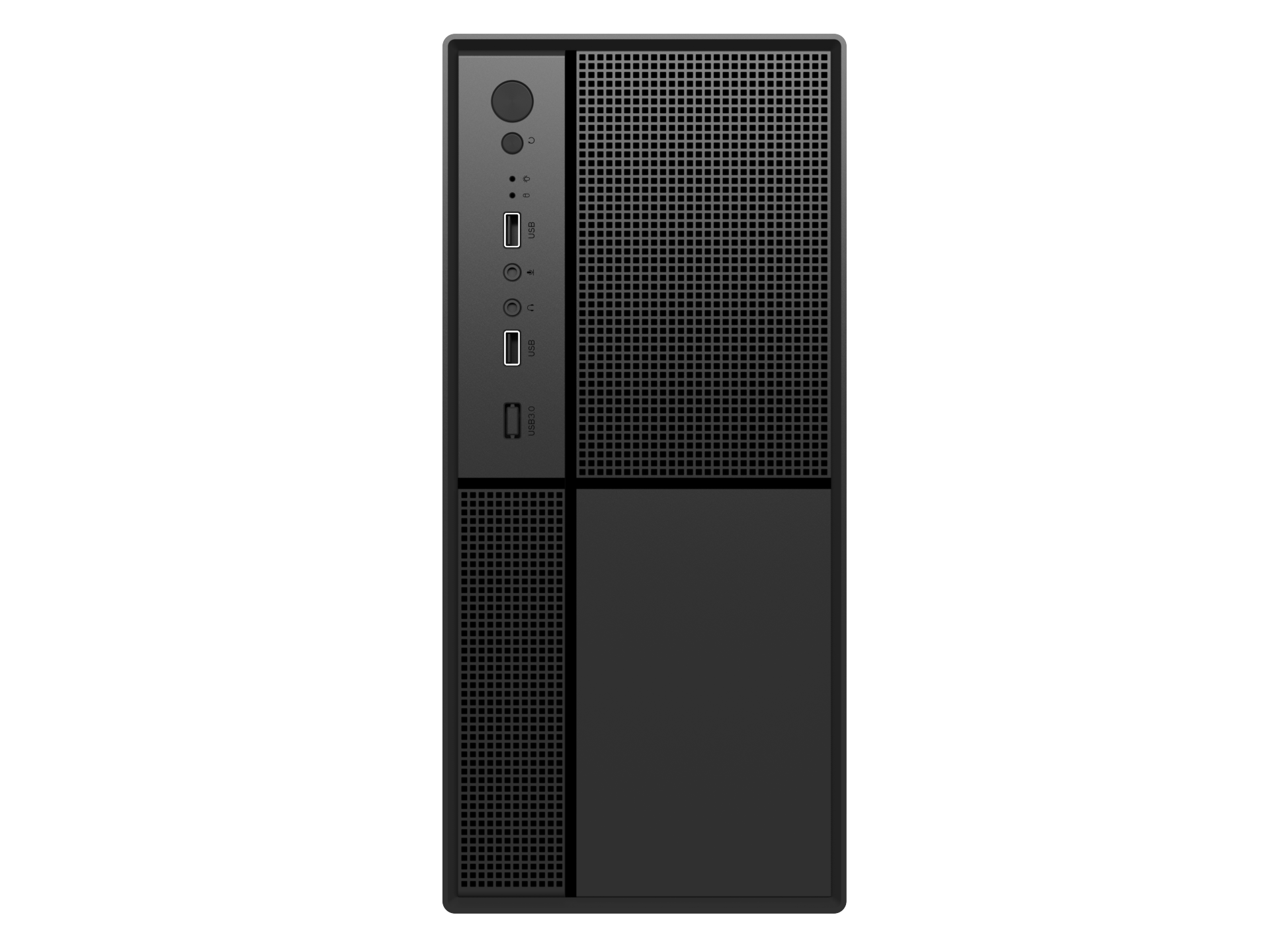

The whole frame is built with 0.35mm full-paint SPCC steel, paired with thicker 0.4mm side panels for enhanced structural rigidity and anti-deformation performance. Full internal paint coating prevents metal burrs and rust, eliminating hidden short-circuit risks for long-term stable daily office use. The front panel adopts matte black ABS material with scratch-resistant texture, maintaining a neat professional business appearance after years of use.

It supports both Micro-ATX and Mini-ATX motherboards, compatible with standard ATX power supplies for universal hardware matching. Multiple heat dissipation fan positions are reserved to guarantee stable internal temperature: a 120mm fan mount on the front panel (fan optional when no hard disk installed), plus an 80/90mm fan position at the rear for bidirectional air circulation to cool down CPU and graphics card efficiently.

In terms of hardware expandability, it comes with 4 PCI expansion slots to support office dedicated expansion cards. It holds a maximum 250mm discrete graphics card and restricts CPU cooler height within 140mm, matching all mainstream entry and mid-range office GPUs & silent cooling solutions. The flexible storage layout supports up to 2 mechanical HDDs + 2 solid-state SSDs, balancing mass file storage and fast system startup for corporate document management.

For export logistics, this mini office tower is packed with K=K reinforced 170g heavy-duty cardboard cartons, which effectively resist extrusion and collision during long-distance sea and land transportation to lower product damage rate. Lightweight body design brings obvious logistics advantages: net weight 1.45KG, gross weight 1.75KG, with an ultra-high loading capacity of 3190 sets per 40HQ container. It greatly cuts down unit transportation cost, creating remarkable profit margins for global office equipment distributors, system integrators and corporate procurement suppliers.
 Product Specifications
